FQ 320/420 HIGH SPEED SLITTING MACHINE
FQ 320/420 HIGH SPEED SLITTING MACHINE
产品特征：
Feature:
1.This slitting machine is used for narrow web slitting with max speed 200m/min.
2.It can slit both paper and Film materials. It has the function of meter counting, label counting and pre-set stopping, there are two sensors to do the web-guiding.
3.This machine has very compact structure, short web path ,high efficient, accurate slitting and very easy to operate.
4.It can be upgraded to 400m/min max speed , 520mm slitting width with magnetic clutch ,advanced patent design of coreless and half inch turret rewinder for small rolls .

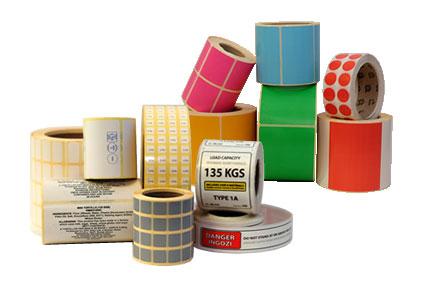

Product Made from Machine:
Teachnical Specifications:
Model | FQ320 | FQ420 |
Max Web Width | 320 mm | 420 mm |
Max Unwinding Dia | 500 mm | 500 mm |
Max Rewinding Dia | 260 mm | 260 mm |
Max.Single Rewind Diameter | 500 mm (option) | 500 mm (option) |
Max slitting Speed | 200 m/min | 200 m/min |
Slitting accuracy | ±0.10 mm | ±0.10 mm |
Min Slitting Width | 17 mm | 17 mm |
Voltage | 1P 220V 50HZ | 1P 220V 50HZ |
Machine size | 1350*1050*1250mm | 1350*1150*1250mm |
Power | 2KW | 2KW |
Weight | 600kg | 600kg |
Please note the machine speed may be limit by other units.
主要配置
Detail Configuration:
Main Electrical Part | Brand |
Control PLC | XINJIE(Chinese brand ) |
Touch Screen | XINJIE(Chinese brand) |
Web Guiding | HENGWANG(Chinese brand) |
Unwinder Servo | Chinese brand |
Rewinder Servo | Chinese brand |
Counter Sensor | Chinese brand |

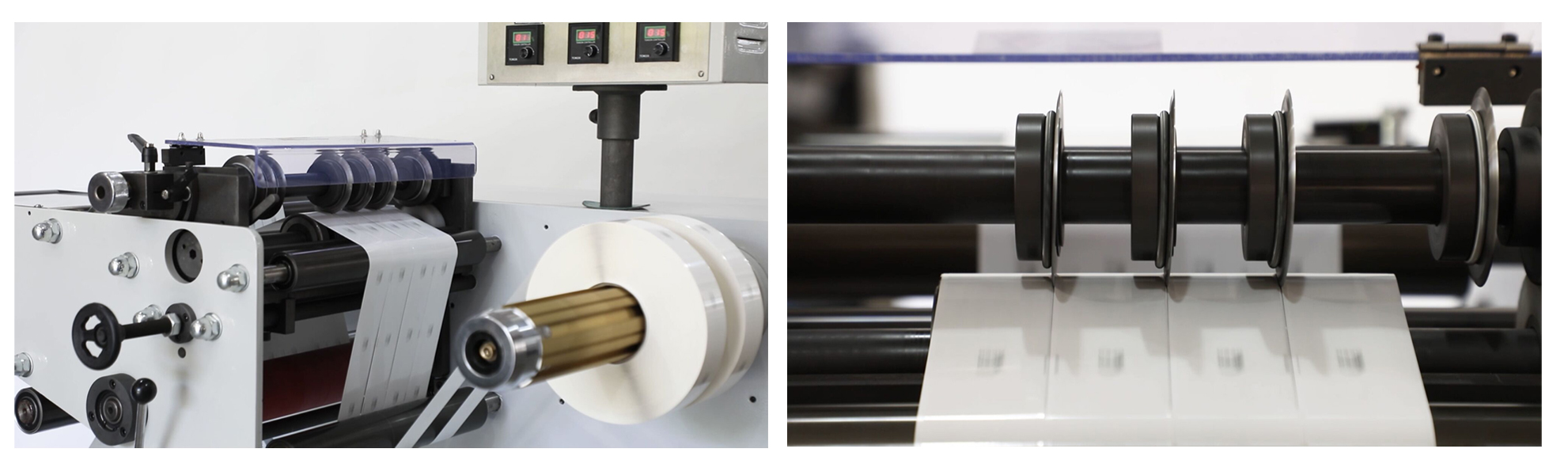

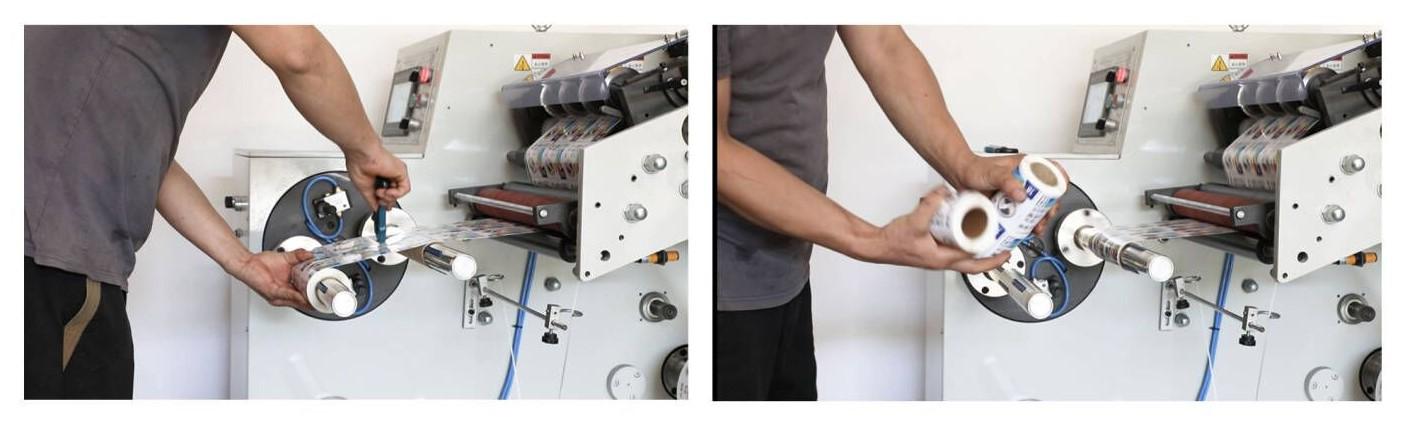

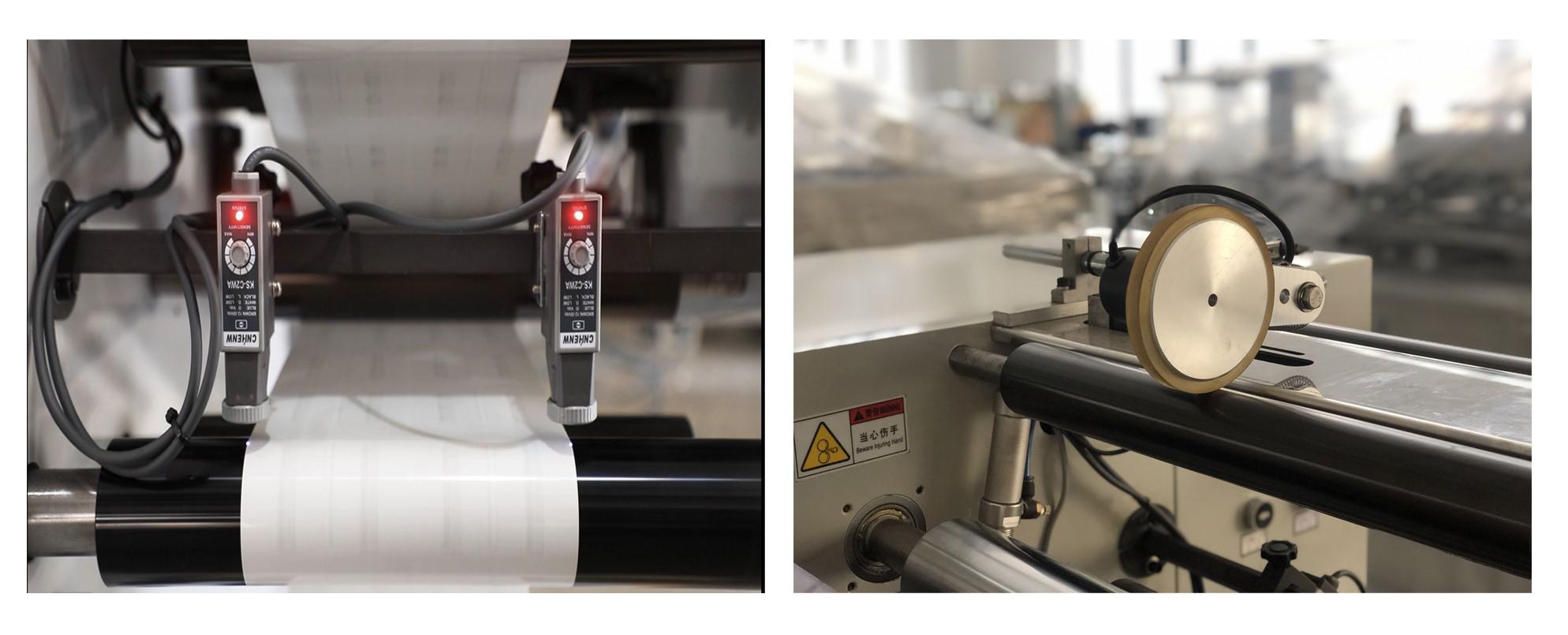

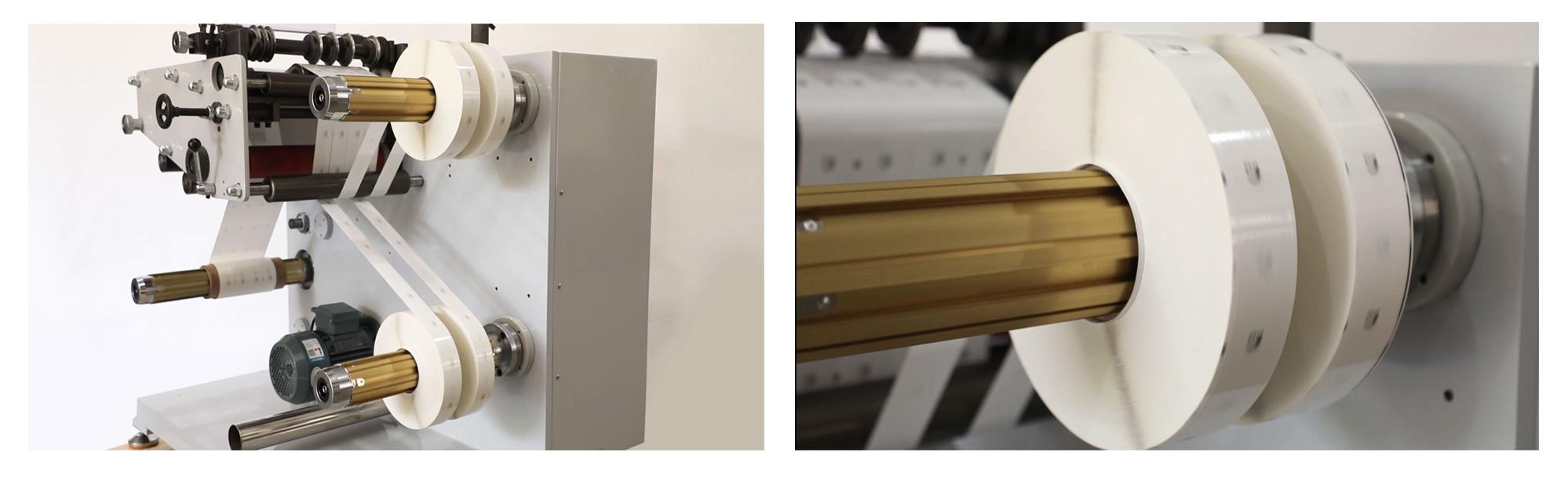

Machine Detailed Pic for Reference:

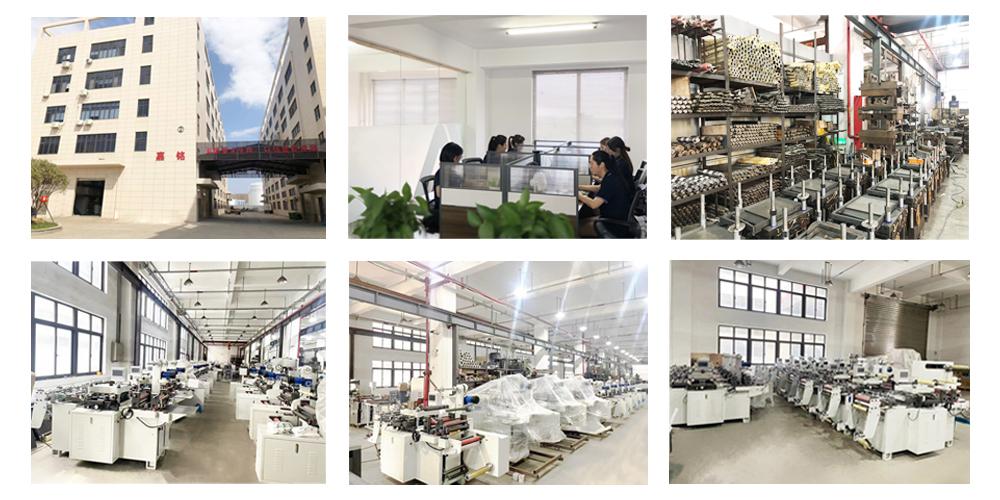

About us
Our company focus on researching and designing(R&D), quality control and after sale service, so we have the ability to provide high quality, reasonable priced products. Since so many years our printing and packaging machines have been well accepted by customers from more than 20 countries.
Packing and Loading of Machine:
